1.1 Document history

Version			Description
1.0	09.05.2026	DDAS	Initial version

2 General

This library provides a comprehensive solution for real-time monitoring and historical tracking of equipment performance. It enables the calculation and analysis of key performance indicators (KPIs) such as production counts, overall equipment effectiveness (OEE), performance rates, and loss metrics across different operational contexts, including batches, shifts, or product runs.

In addition to real-time evaluation, the library supports the structured capture and storage of performance data over time. This allows for detailed trend analysis, traceability, and long-term performance assessment.

The solution includes capabilities for identifying and analysing production losses and operational states, helping to improve transparency and support continuous optimization of manufacturing processes.

The library includes the following user function blocks:

EquipmentPerformance
EP_History

EquipmentPerformance

This Function block calculating and tracking key equipment performance indicators (KPIs), including production counts,

OEE, performance rates, and loss analysis, for an active batch, shift, or product run.

EP_History

This Function block stores equipment performance data into historical arrays, capturing snapshots of performance, production, loss, and top-state metrics from the EquipmentPerformance function block.

Detailed descriptions of the function blocks and their relevant dependencies are provided in the following chapters.

2.2 Licensing Concept

All libraries require a valid license. Each license is based on three mandatory keys:

SiteCode
Provided by the user (e.g. ‘DDAS-Site-License’)
LibraryGuid
Delivered with the library (e.g. ‘{LIB-DDAS-D5BA612E}’)
LibraryActivationKey
Issued by DDAS (e.g. ‘EDB86DA0’)

License Activation Mechanism

To activate a library license, one instance of the function block Get_Lib_License must be called for each licensed library.
This function block is part of the DDAS_LicenseManager_Lib library.

Licensing Process

The following steps are required to license and use a library:

The user selects the required libraries.
The user integrates the selected libraries into a test project or uses the provided demo program and evaluates them using the time‑limited demo license.
If the user intends to use the library function blocks in a machine application, the library is ordered and the selected SiteCode is sent to DDAS.
DDAS provides the corresponding LibraryActivationKey.
In the machine application, the user instantiates the function block Get_Lib_License once for each library and assigns all required license keys to activate the library license.
After successful activation, all function blocks of the licensed library can be implemented and executed.

Note: Detailed information on how to use the function block Get_Lib_License is provided in the software manual of the library DDAS_LicenseManager_Lib.

Note: The function Get_sError is available in every library and provides access to the error description and enumeration corresponding to a function block’s error code, when required.

3 FB EquipmentPerformance

3.1 General Information

This chapter describes the function block EquipmentPerformance.

Function Block Name: EquipmentPerformance

Library: DDAS_ EquipmentPerformance_Lib

Dependent Coveys libraries: Nonel

CODESYS Version Compatibility: CODESYS V3.5 and higher

License / Usage Restrictions: Requires valid full or demo library license

3.2 Purpose & Scope

This Function block calculating and tracking key equipment performance indicators (KPIs), including production counts, OEE, performance rates, and loss analysis, for an active batch, shift, or product run.

It processes production data, schedules, and state information to generate detailed KPIs, production insights, and loss analytics, supporting performance optimization, OEE tracking, and reporting at batch, shift, or product level.

Typical Use Cases

This function block is used in industrial automation systems to monitor and analyse machine performance in real time.

3.3 Functional Overview

When enabled, the Equipment Performance function block provides real-time calculation and tracking of key equipment performance indicators (KPIs) for an active production context, such as a batch, shift, or product run.

It continuously processes operational inputs including production counts, product cycle time, machine performance targets, equipment states, and time information to generate a comprehensive view of machine efficiency and productivity.

The function block evaluates production output by distinguishing between good (OK) and defective (NOK) units and compares actual performance against planned production rates. Based on this data, it calculates key metrics such as performance rates and overall equipment effectiveness (OEE), enabling transparent assessment of production efficiency.

In addition to production metrics, the function block monitors equipment states to identify and categorize production losses. It analyzes downtime, scheduled breaks, and operational conditions to provide detailed loss information and supports prioritization through top-state analysis, highlighting the most significant contributors to reduced performance.

The solution manages lifecycle events of production schedules, including activation and completion, ensuring that KPI tracking is aligned with the current operational context. It also handles transitions between production runs by resetting and reinitializing relevant data at the end of each schedule.

All calculated KPIs and analytical results are made available through structured data outputs, enabling further processing, visualization, or storage in higher-level systems. Built-in status and diagnostic signals provide transparency regarding execution state, licensing, and potential errors, ensuring reliable integration into industrial automation environments.

Note: Multiple instances can be used in parallel. For example, one instance can monitor batch or shift OEE KPIs, while another instance can be used to track product-specific OEE KPIs.

3.4 Interface Description

3.4.0 Function block Inputs and Outputs

Scope	Name	Type	Comment
Input	xEnabled	BOOL	Enables execution of the function block when TRUE.
	xActivated	BOOL	TRUE = Active shift schedule, batch or product run
	xActiveScheduledBreak	BOOL	Active scheduled break from production schedule/calendar
	diScheduleID	DINT	Shift or Batch run Description ; can be 0 by product run
	sScheduleDescription	STRING	Shift or Batch run Description ; can be empty string by product run
	diProductID	DINT	Running product ID
	sProductDescription	STRING	Product type or ID Description
	rProductsPerMin	REAL	Planned Machine Performance in products per min. (valid value between >= 0.001 and <= 10000)
	lrProductCountOK	LREAL	Product OK count
	lrProductCountNOK	LREAL	Product NOK count
	rOEEpercent	REAL	Actual or average OEE in percent e.g 80.5% (expected value between > 0.1 and <= 100 , Limit 999%), 0% will be set to 100%
	dtLocalDateTime	DT	Local Date and Time
	eProdState	eProductionState	Production states and Downtime losses
	scPar	scPar	Equipment Performance input parameter
Inout	scEP	scPerformanceDetails	Equipment performance KPI’s about the active scheduled batch, shift, or product run.
	scPD	scProductionDetails	Detailed information about the active scheduled batch, shift, or product run.
	scPL	scProductionLossDetails	Detailed information about the losses of the active scheduled batch, shift, or product run.
	scTS	scTopState	Top-state analysis of the duration and occurrences of losses in the active scheduled batch, shift, or product run.
Output	xActiveSchedule	BOOL	Valid active schedule and KPI calculation
	xScheduleEnd	BOOL	TRUE for one PLC cycle on end of schedule; all output date get be cleared and reseted on the next PLC cycle
	xLicensed	BOOL	TRUE when a valid full or demo library license is active
	xError	BOOL	TRUE if an error or warning is detected. Detailed error information is provided in iErrorID
	iErrorID	INT	Error and status identifier for diagnostics

3.5 Execution & Timing Behaviour

The function block is intended to be executed cyclically in a task context.

Timing precision depends on the configured task cycle time and target platform

3.6 Error Handling & Diagnostics

If an internal error, a library issue, or a licensing problem occurs, xError is set to TRUE and iErrorID provides the corresponding error code. Detailed descriptions of the error codes are defined in the enumeration eError.

3.7 Assumptions & Limitations

Accuracy depends on the system clock. Hardware‑dependent behavior may vary across different CODESYS platforms.

The function block KPI calculation is restricted to a 49-day window. If the required build time extends beyond this period, the function block cannot provide a valid result.

Before ordering this library, please verify the correct functionality of the library function block in your target system.

3.8 Example Implementation

Declaration and Call of the Function Block EquipmentPerformance:

GVL_MIF:

VAR_GLOBAL

xActiveSchedule	: BOOL;	// TRUE when a shift or batch schedule is currently active.
xActiveBreak	: BOOL;	// TRUE when a break schedule is currently active.
diJobID	: DINT;	// Batch ID
sActiveScheduleDesc	: STRING;	// Active schedule description of Shift schedule or JobID
diProductID	: DINT;	// Running product ID
sProductDescription	: STRING;	// Product type or ID Description
rProductsPerMin	: REAL;	// Planned Machine Performance in products per min. (valid value between >= 0.001 and <= 10000)
lrActualBuildOK	: LREAL;	Actual build products, if no parts are made it is zero (0)
lrActualBuildNOK	: LREAL;	Actual build scrap products, if no parts are made it is zero (0)
rOEEpercent	: REAL;	// Actual or average OEE in percent e.g 80.5% (expected value between > 0.1 and <= 100 %, Limit 999%), 0% will be set to 100%
dtLocalDateTime	: DT;	// Local Date and Time

END_VAR

GVL_Par_EP:

VAR_GLOBAL

scPar	: DDAS_EP.scPar;	// Parameter Input structure FB EquipmentPerformance
eProdState	: DDAS_EP.eProductionState;	// Production states

END_VAR

GVL_Par_EP_History:

VAR_GLOBAL

scEP	: DDAS_EP.scPerformanceDetails;	// Equipment performance KPI's about the active scheduled batch, shift, or product run
scPD	: DDAS_EP.scProductionDetails;	// Detailed information about the active scheduled batch, shift, or product run
scPL	: DDAS_EP.scProductionLossDetails;	// Detailed information about the losses of the active scheduled batch, shift, or product run
scTS	: DDAS_EP.scTopState;	// Top-state analysis of the duration and occurrences of losses in the active scheduled batch, shift, or product run

END_VAR

VAR

fb_EP : DDAS_EP.EquipmentPerformance;

END_VAR

FB call in structure text:

fb_ EP(

xEnabled := TRUE,

xActivated := GVL_MIF.xActiveSchedule,

xActiveScheduledBreak := GVL_MIF.xActiveBreak,

diScheduleID := GVL_MIF.diJobID,

sScheduleDescription := GVL_MIF.sActiveScheduleDesc,

diProductID := GVL_MIF.diProductID,

sProductDescription := GVL_MIF.sProductDescription,

rProductsPerMin := GVL_MIF.rProductsPerMin,

lrProductCountOK := GVL_MIF.lrActualBuildOK,

lrProductCountNOK := GVL_MIF.lrActualBuildNOK,

rOEEpercent := GVL_MIF.rOEEpercent,

dtLocalDateTime := GVL_MIF.dtLocalDateTime,

eProdState := GVL_Par_EP.eProdState,

scPar := GVL_Par_EP.scPar,

scEP := GVL_EP_History.scEP,

scPD := GVL_EP_History.scPD,

scPL := GVL_EP_History.scPL,

scTS := GVL_EP_History.scTS

);

FB call in continuous function chart diagram:

Function block sample input and output parameter:

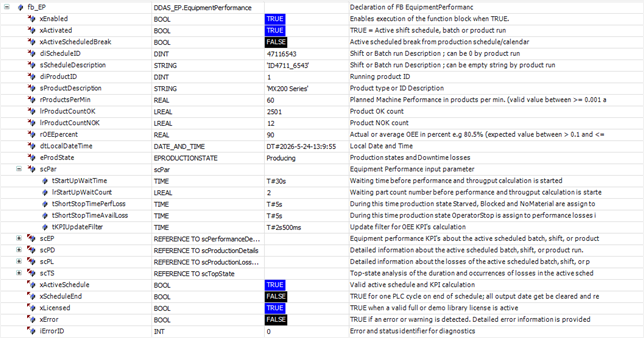

Screenshot example in Online / Monitor mode

Demo Visualisation

4 FB EP_History

4.1 General Information

This chapter describes the function block EP_History.

Function Block Name: EP_History

Library: DDAS_EquipmentPerformance_Lib

Dependent Codesys libraries: None

CODESYS Version Compatibility: CODESYS V3.5 and higher

License / Usage Restrictions: Requires valid full or demo library license

4.2 Purpose & Scope

his Function block stores equipment performance data into historical arrays, capturing snapshots of performance, production, loss, and top-state metrics from the EquipmentPerformance function block.

This function block is used to maintain a rolling history of equipment performance data for analysis, visualization, and reporting.

It enables controlled storage and clearing of historical KPI datasets, preserving time-based snapshots in reverse chronological order.

Typical Use Cases

Typical applications include trend analysis, dashboard visualization, batch/shift comparison, and short-term buffering of performance data for higher-level systems such as SCADA, MES, or cloud analytics.

4.3 Functional Overview

When enabled, the Equipment Performance History function block provides structured storage and management of time-based equipment performance data. It captures snapshots of key performance datasets, including performance metrics, production details, loss information, and top-state analysis, and organizes them into historical records for further use.

The function block enables selective recording of different data categories, allowing flexible control over which information is stored. Data is captured on demand and inserted into history buffers in reverse chronological order, ensuring that the most recent dataset is always immediately accessible while maintaining a defined history depth.

In addition to data storage, the function block supports controlled clearing of historical records, enabling reset operations when required, such as at the start of new production phases or for memory management purposes.

The stored historical data can be used for trend analysis, visualization, and reporting in higher-level systems. This supports use cases such as performance monitoring over time, comparison of batches or shifts, and short-term buffering of KPIs before transfer to SCADA, MES, or cloud-based analytics platforms.

Status signals indicate the successful execution of storage and clearing operations, while integrated diagnostic outputs provide transparency regarding licensing status and potential errors. This ensures reliable and traceable operation within industrial automation environments.

Note: Multiple instances can be used in parallel. For example, one instance can store history data of batch or shift OEE KPIs, while another instance can be used to store history data of product-specific OEE KPIs.

4.4 Interface Description

4.4.0 Function block Inputs and Outputs

Scope	Name	Type	Comment
Input	xEnabled	BOOL	Enables execution of the function block when TRUE.
	xStoreHistoryEP	BOOL	Store history Performance Details data
	xStoreHistoryPD	BOOL	Store history Production Details data
	xStoreHistoryPL	BOOL	Store history Production Loss Details data
	xStoreHistoryTS	BOOL	Store history Top State data
	xStoreHistoryData	BOOL	On rising True store History data
	xClearHistoryData	BOOL	On rising True clear History data
Inout	scEP	scPerformanceDetails	Input Performance Details data
	scPD	scProductionDetails	Input Production Details data
	scPL	scProductionLossDetails	Input Production Loss Details data
	scTS	scTopState	Input Top State data
	ascEP	ARRAY [0..GVL_Constant_EP.uiHistorySize] OF scPerformanceDetails	History Performance Details data (Values are stored in reverse chronological order, with index 0 representing the newest entry and index 9 the oldest)
	ascPD	ARRAY [0..GVL_Constant_EP.uiHistorySize] OF scProductionDetails	History Production Details data (Values are stored in reverse chronological order, with index 0 representing the newest entry and index 9 the oldest)
	ascPL	ARRAY [0..GVL_Constant_EP.uiHistorySize] OF scProductionLossDetails	History Production Loss Details data (Values are stored in reverse chronological order, with index 0 representing the newest entry and index 9 the oldest)
	ascTS	ARRAY [0..GVL_Constant_EP.uiHistorySize] OF scTopState	History Top State data (Values are stored in reverse chronological order, with index 0 representing the newest entry and index 9 the oldest)
Output	xStoreHistoryDone	BOOL	IF TRUE history data are stored; TRUE for one PLC cycle
	xClearHistoryDone	BOOL	IF TRUE history data are cleared; TRUE for one PLC cycle
	xLicensed	BOOL	TRUE when a valid full or demo library license is active
	xError	BOOL	TRUE if an error or warning is detected. Detailed error information is provided in iErrorID
	iErrorID	INT	Error and status identifier for diagnostics

4.5 Execution & Timing Behaviour

The function block is intended to be executed cyclically in a task context.

Timing precision depends on the configured task cycle time and target platform

4.6 Error Handling & Diagnostics

4.7 Assumptions & Limitations

Accuracy depends on the system clock. Hardware‑dependent behavior may vary across different CODESYS platforms.

Before ordering this library, please verify the correct functionality of the library function block in your target system.

4.8 Example Implementation

Declaration and Call of the Function Block EP_History:

GVL_Par_EP:

VAR_GLOBAL

xScheduleEnd	: BOOL;	// TRUE for one PLC cycle on end of schedule; all output date get be cleared and reseted on the next PLC cycle
xClearHistoryData	: BOOL;	// On rising True clear History data

END_VAR

GVL_Par_EP_History:

VAR_GLOBAL

scEP	: DDAS_EP.scPerformanceDetails;	// Equipment performance KPI's about the active scheduled batch, shift, or product run
scPD	: DDAS_EP.scProductionDetails;	// Detailed information about the active scheduled batch, shift, or product run
scPL	: DDAS_EP.scProductionLossDetails;	// Detailed information about the losses of the active scheduled batch, shift, or product run
scTS	: DDAS_EP.scTopState;	// Top-state analysis of the duration and occurrences of losses in the active scheduled batch, shift, or product run
ascEP	: ARRAY[0..DDAS_EP.GVL_Constant_EP.uiHistorySize] OF DDAS_EP.scPerformanceDetails;	// History Equipment performance KPI's about the active scheduled batch, shift, or product run
ascPD	: ARRAY[0..DDAS_EP.GVL_Constant_EP.uiHistorySize] OF DDAS_EP.scProductionDetails;	// History detailed information about the active scheduled batch, shift, or product run
ascPL	: ARRAY[0..DDAS_EP.GVL_Constant_EP.uiHistorySize] OF DDAS_EP.scProductionLossDetails;	// History detailed information about the losses of the active scheduled batch, shift, or product run
ascTS	: ARRAY[0..DDAS_EP.GVL_Constant_EP.uiHistorySize] OF DDAS_EP.scTopState;	// History Top-state analysis of the duration and occurrences of losses in the active scheduled batch, shift, or product run

END_VAR

VAR

fb_EP_History : DDAS_EP.EP_History;

END_VAR

FB call in structure text:

fb_EP_History(

xEnabled := TRUE,

xStoreHistoryEP := TRUE,

xStoreHistoryPD := TRUE,

xStoreHistoryPL := TRUE,

xStoreHistoryTS := TRUE,

xStoreHistoryData := GVL_Par_EP.xScheduleEnd,

xClearHistoryData := GVL_Par_EP.xClearHistoryData,

scEP := GVL_EP_History.scEP,

scPD := GVL_EP_History.scPD,

scPL := GVL_EP_History.scPL,

scTS := GVL_EP_History.scTS,

ascEP := GVL_EP_History.ascEP,

ascPD := GVL_EP_History.ascPD,

ascPL := GVL_EP_History.ascPL,

ascTS := GVL_EP_History.ascTS

);

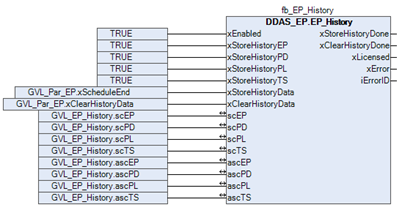

FB call in continuous function chart diagram:

Function block sample input and output parameter:

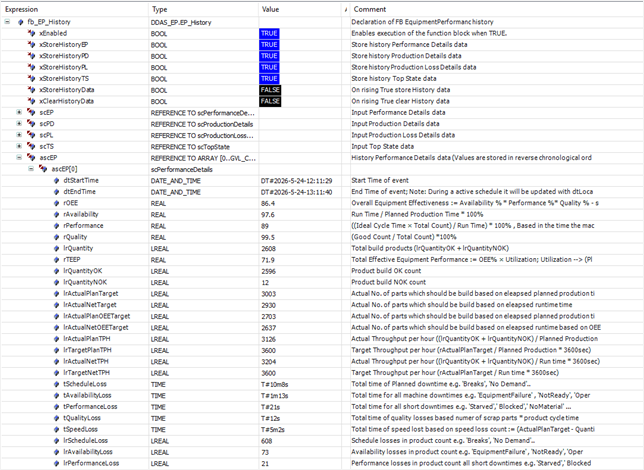

Screenshot example in Online / Monitor mode

5 Global

5.1 Structures

scPar

This structure provides input user‑configuration.

Name	Type	Initial	Comment
tStartUpWaitTime	TIME	TIME#5m0s0ms	Waiting time before performance and througput calculation is started
lrStartUpWaitCount	LREAL	10	Waiting part count number before performance and througput calculation is started
tShortStopTimePerfLoss	TIME	TIME#10s0ms	During this time production state Starved, Blocked and NoMaterial are assign to performance losses otherwise to availability losses
tShortStopTimeAvailLoss	TIME	TIME#30s0ms	During this time production state OperatorStop is assign to performance losses instead to availability losses
tKPIUpdateFilter	TIME	TIME#5s0ms	Update filter for OEE KPI’s calculation

scPerformanceDetails

his structure provides Equipment performance KPI’s about the active scheduled batch, shift, or product run.

Name	Type	Comment
dtStartTime	DT	Start Time of event
dtEndTime	DT	End Time of event; Note: During a active schedule it will be updated with dtLocalDateTime and freeze on the end of the schedule
rOEE	REAL	Overall Equipment Effectiveness := Availability % * Performance %* Quality % - shift based
rAvailability	REAL	Run Time / Planned Production Time * 100%
rPerformance	REAL	((Ideal Cycle Time × Total Count) / Run Time) * 100% , Based in the time the machine is in production
rQuality	REAL	(Good Count / Total Count) *100%
lrQuantity	LREAL	Total build products (lrQuantityOK + lrQuantityNOK)
rTEEP	REAL	Total Effective Equipment Performance := OEE% × Utilization; Utilization –> (Planned Production Time / All Time)
lrQuantityOK	LREAL	Product build OK count
lrQuantityNOK	LREAL	Product build NOK count
lrActualPlanTarget	LREAL	Actual No. of parts which should be build based on eleapsed planned prodution time
lrActualNetTarget	LREAL	Actual No. of parts which should be build based on eleapsed runtime time
lrActualPlanOEETarget	LREAL	Actual No. of parts which should be build based on eleapsed planned prodution time based on OEE target
lrActualNetOEETarget	LREAL	Actual No. of parts which should be build based on eleapsed runtime based on OEE target
lrActualPlanTPH	LREAL	Actual Throughput per hour ((lrQuantityOK + lrQuantityNOK) / Planned Production * 3600sec)
lrTargetPlanTPH	LREAL	Target Throughput per hour (rActualPlanTarget / Planned Production * 3600sec)
lrActualNetTPH	LREAL	Actual Throughput per hour ((lrQuantityOK + lrQuantityNOK) / Run time * 3600sec)
lrTargetNetTPH	LREAL	Target Throughput per hour (rActualPlanTarget / Run time * 3600sec)
tScheduleLoss	TIME	Total time of Planned downtime e.g. ‘Breaks’, ‘No Demand’..
tAvailabilityLoss	TIME	Total time for all machine downtimes e.g. ‘EquipmentFailure’ , ‘NotReady’, ‘OperatorStop’…
tPerformanceLoss	TIME	Total time for all short downtimes e.g. ‘Starved’,’ Blocked’,’ NoMaterial’ …
tQualityLoss	TIME	Total time of quality losses based numer of scrap parts * product cycle time
tSpeedLoss	TIME	Total time of speed lost based on speed loss count := (ActualPlanTarget - QuantityOK - QuantityNOK - AvailabilityLoss - PerformanceLoss)
lrScheduleLoss	LREAL	Schedule losses in product count e.g. ‘Breaks’, ‘No Demand’..
lrAvailabilityLoss	LREAL	Availability losses in product count e.g. ‘EquipmentFailure’ , ‘NotReady’, ‘OperatorStop’…
lrPerformanceLoss	LREAL	Performance losses in product count all short downtimes e.g. ‘Starved’,’ Blocked’,’ NoMaterial’, ‘OperatorStop’…
lrQualityLoss	LREAL	Quality losses in product count = lrQuantityNOK
lrSpeedLoss	LREAL	Speed Losses in product count := (ActualPlanTarget - QuantityOK - QuantityNOK - AvailabilityLoss - PerformanceLoss)

scProductionDetails

This structure provides detailed information about the active scheduled batch, shift, or product run.

Name	Type	Comment
dtStartTime	DT	Start Time of event
dtEndTime	DT	End Time of event; Note: During a active schedule it will be updated with dtLocalDateTime and freeze on the end of the schedule
tDuration	TIME	Time elapsed since the start
diScheduleID	DINT	Shift or Batch run Description ; can be 0 by product run
sScheduleDescription	STRING	Shift or Batch run Description ; can be empty string by product run
diProductID	DINT	Running product ID
sProductDescription	STRING	Product type or ID Description
rProductTime	REAL	Part cycle time base don input parameter (60.0 / rProductsPerMin)
tActualAllTime	TIME	Actual All Time (Actual time - Schedule start)
tPlannedProdTime	TIME	Planned Production Time (Actual All time - Schedule Loss)
tRunTime	TIME	Run Time (Planned Production Time - Availability Loss)
tNetRunTime	TIME	Net Run Time (Run Time - Performance Loss)
tFullyProdTime	TIME	Fully Productive Time (Net Run Time - Quality Loss)
tProducing	TIME	Time production is running
uiProducing	UINT	Occurrence rate how oftens the production was started

scProductionLossDetails

This structure provides detailed information about the losses of the active scheduled batch, shift, or product run.

Name	Type	Comment
dtStartTime	DT	Start Time of event
dtEndTime	DT	End Time of event; Note: During a active schedule it will be updated with dtLocalDateTime and freeze on the end of the schedule
eEP_PT	eEP_ProductionState	Output production states as enumeration
tUnplannedDowntime	TIME	Total time of unplanned Availability and Performance events
uiUnplannedOccurrence	UINT	Total Occurrence rate of unplanned Availability and Performance events
tBreak	TIME	Time production is in break and production has stopped
tNoDemand	TIME	Time where there is no production demand or order
tNone	TIME	Time where no production state is identified
tStarvedShort	TIME	Time where upstream is starved e.g. No incoming parts
tBlockedShort	TIME	Time where downstream is blocked e.g. No output part transfer
tNoMaterialShort	TIME	Time where is No material available for production(e.g. film roll empty)
tOperatorStopShort	TIME	Time when the Operator-initiated pause for minor issues (e.g., clearing a jam)
tEquipmentFailure	TIME	Time when Emergency or critical fault is active and production has been aborted
tNotReady	TIME	Time when the machine has been stopped and wating for restart
tOperatorStop	TIME	Time when the Operator-initiated pause for minor issues (e.g., clearing a jam)
tStarved	TIME	Time where upstream is starved e.g. No incoming parts
tBlocked	TIME	Time where downstream is blocked e.g. No output part transfer
tNoMaterial	TIME	Time where is No material available for production(e.g. film roll empty)
uiBreak	UINT	Occurrence rate production is in break and production has stopped
uiNoDemand	UINT	Occurrence rate where there is no production demand or order
uiNone	UINT	Occurrence rate where no production state is identified
uiStarvedShort	UINT	Occurrence rate where upstream is starved e.g. No incoming parts
uiBlockedShort	UINT	Occurrence rate where downstream is blocked e.g. No output part transfer
uiNoMaterialShort	UINT	Occurrence rate where No material is available for production(e.g. film roll empty)
uiOperatorStopShort	UINT	Occurrence rate when the Operator-initiated pause for minor issues (e.g., clearing a jam)
uiEquipmentFailure	UINT	Occurrence rate when Emergency or critical fault is active and production has been aborted
uiNotReady	UINT	Occurrence rate when the machine has been stopped and wating for restart
uiOperatorStop	UINT	Occurrence rate when the Operator-initiated pause for minor issues (e.g., clearing a jam)
uiStarved	UINT	Occurrence rate where upstream is starved e.g. No incoming parts
uiBlocked	UINT	Occurrence rate where downstream is blocked e.g. No output part transfer
uiNoMaterial	UINT	Occurrence rate where No material is available for production(e.g. film roll empty)

scTopState

This structure provides top-state analysis of the duration and occurrences of losses in the active scheduled batch, shift, or product run.

Name	Type	Comment
dtStartTime	DT	Start Time of event
dtEndTime	DT	End Time of event; Note: During a active schedule it will be updated with dtLocalDateTime and freeze on the end of the schedule
scTopStateDur	ARRAY [0..9] OF scTopStateDuration
scTopStateOcc	ARRAY [0..9] OF scTopStateOccurances

scTopStateDuration

This structure provides the duration of losses in the active scheduled batch, shift, or product run.

Name	Type	Comment
eTopStateDurations	eTopState	Top state durations index 0 is longest time
tSortOfTime	TIME	Time of State duration
rDowntimePercent	REAL	Downtime percent of the total downtime

scTopStateOccurances

This structure provides occurrences of losses in the active scheduled batch, shift, or product run.

Name	Type	Comment
eTopStateOccurrence	eTopState	Top state Occurrence index 0 is most occurrences
uiSortOfOccurrence	UINT	Number of Occurrence
rDowntimePercent	REAL	Downtime percent of the total downtime

5.2 Enumerations

eProductionState

Defined input production states as enumeration.

Name	Initial	Comment
None	0	unknowing production state.
Producing	1	Production is running (Note: e.g. Execute or Running)
NoDemand	10	Machine is ready to start waiting for Start (Note: Planned downtime e.g. Idle state, No Order).
Starved	20	Automatic pause triggered by upstream conditions (blocked/starved); (Note: Performance loss e.g. Suspended state).
Blocked	21	Automatic pause triggered by downstream conditions (blocked/starved); (Note: Performance loss e.g. Suspended state).
NoMaterial	22	No material (e.g. film roll empty); (Note: Performance loss e.g. Suspended state).
EquipmentFailure	30	Emergency or critical fault state; stops immediately (Note: Availability loss e.g. Abort state).
NotReady	31	Safe stopped condition; requires start command (Note: Availability loss e.g. Stopped state).
OperatorStop	32	Operator-initiated pause for minor issues (e.g., clearing a jam); (Note: Availability loss e.g. Held state).

eTopState

Defined provided production loss states as enumeration.

Name	Initial	Comment
None	0	unknowing production state.
Starved	20	Automatic pause triggered by upstream conditions (blocked/starved); (Note: Performance loss e.g. Suspended state).
Blocked	21	Automatic pause triggered by downstream conditions (blocked/starved); (Note: Performance loss e.g. Suspended state).
NoMaterial	22	No material (e.g. film roll empty); (Note: Performance loss e.g. Suspended state).
EquipmentFailure	30	Emergency or critical fault state; stops immediately (Note: Availability loss e.g. Abort state).
NotReady	31	Safe stopped condition; requires start command (Note: Availability loss e.g. Stopped state).
OperatorStop	32	Operator-initiated pause for minor issues (e.g., clearing a jam); (Note: Availability loss e.g. Held state).
StarvedShort	40	Short automatic pause triggered by upstream conditions (blocked/starved); (Note: Performance loss e.g. Suspended state).
BlockedShort	41	Short automatic pause triggered by downstream conditions (blocked/starved); (Note: Performance loss e.g. Suspended state).
NoMaterialShort	42	Short No material (e.g. film roll empty); (Note: Performance loss e.g. Suspended state).
OperatorStopShort	43	Short Operator-initiated pause for minor issues (e.g., clearing a jam); (Note: Availability loss e.g. Held state).

eEP_ProductionState

Defined output production states as enumeration.

Name	Initial	Comment
None	0	unknowing production state.
Producing	1	Production is running (Note: e.g. Execute or Running).
Break	3	Active Break / Pause - Performance calculation is on Hold
NoDemand	10	Machine is ready to start waiting for Start (Note: Planned downtime e.g. Idle state, No Order).
Starved	20	Automatic pause triggered by upstream conditions (blocked/starved); (Note: Performance loss e.g. Suspended state).
Blocked	21	Automatic pause triggered by downstream conditions (blocked/starved); (Note: Performance loss e.g. Suspended state).
NoMaterial	22	No material (e.g. film roll empty); (Note: Performance loss e.g. Suspended state).
EquipmentFailure	30	Emergency or critical fault state; stops immediately (Note: Availability loss e.g. Abort state).
NotReady	31	Safe stopped condition; requires start command (Note: Availability loss e.g. Stopped state).
OperatorStop	32	Operator-initiated pause for minor issues (e.g., clearing a jam); (Note: Availability loss e.g. Held state).
StarvedShort	40	Short automatic pause triggered by upstream conditions (blocked/starved); (Note: Performance loss e.g. Suspended state).
BlockedShort	41	Short automatic pause triggered by downstream conditions (blocked/starved); (Note: Performance loss e.g. Suspended state).
NoMaterialShort	42	Short No material (e.g. film roll empty); (Note: Performance loss e.g. Suspended state).
OperatorStopShort	43	Short Operator-initiated pause for minor issues (e.g., clearing a jam); (Note: Availability loss e.g. Held state).

eError

Library Possible Error Codes and Descriptions as enumeration.

Name	Initial	Comment
no_error	0	No error detected.
no_ValidLicense	10	No valid license was found. Please verify the library license using DDAS_LM.Get_Lib_License.
invalid_LocalDateTime	21	Invalid dtLocalDateTime = DT#1970-01-01-00:00:00.
invalid_eDayofWeek	23	Invalid weekday eDayofWeek = 0 or eDayofWeek > 7.
invalid_DateTimeBoundries	25	Invalid date and time boundaries = DT#1970-01-01-00:00:00 or dtLocalDateTime = DT#2106-02-07-06:28:15).
invalid_InputParameter	30	At least one input parameter is zero or lies outside the permissible range..
no_Active_Schedule	31	No active schedule was found.
productionState_None	32	Input production state is None and invalid. need to be set to <> None.
drift_ProductCount	33	The input part count may drift slightly; this could be normal and will be ignored.
negativ_ProductCount	34	The input part count is invalid because it is negative; only positive values are allowed.
productCount_NoSchedule	35	Detected product count during no active schedule.
week_overlow	40	Batch end behind one week.
ltime_overflow	41	The calculated LTime value is greater than 1000 days and exceeds the allowed range.
time_overflow	42	The calculated Time value is greater than 49 days and exceeds the allowed range.
invalid_time_diff	45	Invalid time difference calculation subtrahend > minuend
unknowing_error	99	Unknowing error detected.

5.3 Global Variable

GVL_Constant_EP

Library constants.

Scope	Name	Type	Initial	Comment
Constant	uiHistorySize	UINT	20	Max. size of historical array storage

GVL_LibGuide

This Global Variable List provides the library license GUID. Relevant input parameter for the function block DDAS_LM.Get_Lib_License, required to activate the library license in conjunction with the activation key and side code.

Scope	Name	Type	Initial	Comment
Constant	cLibraryGuid	STRING	‘{LIB-DDAS-FF2F57D0}’	Unique Library license GUID for use in the user program to activate the library license.

5.4 Example Implementation

The following screenshots illustrate a complete implementation of the library function blocks, including the license function block.

The current local date, time, and day of the week can be obtained using the DDAS function block DDAS_DT.GetDateTimeInfo from the DDAS_DateTime_lib library.

FEEDBACK

Your Feedback Matters

These instructions have been prepared to the best of our knowledge and belief to provide you with the highest possible level of support when working with our product.

Despite our best efforts, we may not always fully achieve this objective. If you identify any issues or have suggestions for improvement, we would greatly appreciate your feedback.

Please send your comments or criticism in a short e‑mail to:

support@ddas.digital

Thank you for your support.

Your DDAS Application Software Team

Documentation	Subject
DDAS LicenseManager Library Manual	Description and usage of the library license management function blocks
DDAS DateTime Library Manual	Description and usage of the GetDateTime function block.
DDAS Scheduler Library Manual	Description and usage of the library function block.
