1.1 Document history

Version			Description
1.0	14.04.2026	DDAS	Initial version

2 General

This library support batch‑oriented manufacturing by calculating required production time, estimating batch completion while considering production and break schedules, and providing real‑time and historical information about active schedules.

They use product targets and actual machine performance to enable accurate time estimation, schedule awareness, and event triggering.

The provided data supports operator displays, production planning, synchronization of automation logic, scheduling of downstream processes, and proper handling of shifts and breaks.

The library includes the following user function blocks:

GetBuildTime
GetBatchScheduledEndTime
GetSchedule
UpdateInterval

GetBuildTime

Calculates the total production time required to complete all target products based on actual machine performance. It provides a pure build-time estimate without considering schedules or breaks, supporting production planning, operator displays, and downstream process coordination.

GetBatchScheduledEndTime

Estimates the expected batch end time by combining calculated build time with configured production schedules and planned breaks. It enables realistic batch completion forecasts for planning, scheduling, and triggering follow‑up automation actions.

GetSchedule

Provides real‑time and historical information about the currently active production or break schedule, including timing, duration, and start/end trigger signals. It supports schedule monitoring, synchronization of production logic, operator visualization, and correct handling of shifts and breaks in automated systems.

UpdateInterval

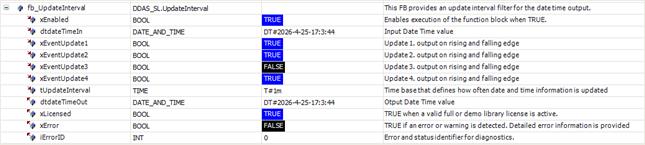

Controls the update rate of date and time outputs by applying a configurable interval filter, ensuring that values are refreshed only when necessary. It is designed to reduce unnecessary high-frequency updates, improving readability and usability for operator displays.

Detailed descriptions of the function blocks and their relevant dependencies are provided in the following chapters.

2.2 Licensing Concept

All libraries require a valid license. Each license is based on three mandatory keys:

SiteCode
Provided by the user (e.g. ‘DDAS-Site-License’)
LibraryGuid
Delivered with the library (e.g. ‘{LIB-DDAS-D5BA612E}’)
LibraryActivationKey
Issued by DDAS (e.g. ‘EDB86DA0’)

License Activation Mechanism

To activate a library license, one instance of the function block Get_Lib_License must be called for each licensed library.
This function block is part of the DDAS_LicenseManager_Lib library.

Licensing Process

The following steps are required to license and use a library:

The user selects the required libraries.
The user integrates the selected libraries into a test project or uses the provided demo program and evaluates them using the time‑limited demo license.
If the user intends to use the library function blocks in a machine application, the library is ordered and the selected SiteCode is sent to DDAS.
DDAS provides the corresponding LibraryActivationKey.
In the machine application, the user instantiates the function block Get_Lib_License once for each library and assigns all required license keys to activate the library license.
After successful activation, all function blocks of the licensed library can be implemented and executed.

Note: Detailed information on how to use the function block Get_Lib_License is provided in the software manual of the library DDAS_LicenseManager_Lib.

Note: The function Get_eError is available in every library and provides access to the error enumeration corresponding to a function block’s error code, when required.

Demo Visualisation

3 FB GetBuildTime

3.1 General Information

This chapter describes the function block GetBuildTime.

Function Block Name: GetBuildTime

Library: DDAS_Scheduler_Lib

Dependent Codesys libraries: Util

CODESYS Version Compatibility: CODESYS V3.5 and higher

License / Usage Restrictions: Requires valid full or demo library license

3.2 Purpose & Scope

This function block GetbuidTime calculates the remaining time required to complete a production batch based on defined target quantities and actual machine performance

This function block is typically used in batch-oriented manufacturing applications to calculate the build time required to complete all products. The calculation is based on defined product targets and actual machine performance and does not consider production schedules or breaks.

Typical Use Cases

The resulting information can be used for operator displays, production planning, scheduling of downstream processes, or triggering subsequent automation steps.

3.3 Functional Overview

When enabled, the GetBuildTime function block executes its calculation cyclically and uses the current local date and time internally.

The calculation is based on the planned product target, the number of products already produced, the machine’s nominal throughput, and the effective performance derived from the OEE value.

Production schedules, breaks, and shift models are not considered.

The result provides a precise time‑to‑completion value and indicates when the batch target has been reached or exceeded.

Additional status outputs support license verification and diagnostic handling.

Key inputs include:

Batch definition inputs, such as the target quantity and the number of products already produced.
Machine performance inputs, including products per minute and OEE.
Control and timing inputs, such as enable signals, and local date and time.

Key outputs include:

The calculated remaining build time until the batch target is reached.
A status indicator signalling when the batch target has been achieved or exceeded.
Diagnostic and licensing outputs indicating license validity and any error or warning conditions with detailed status information.

3.4 Interface Description

3.4.0 Function block Inputs and Outputs

Scope	Name	Type	Initial	Comment
Input	xEnabled	BOOL		Enables execution of the function block when TRUE.
	xActive	BOOL		Starts the build time calculation for the current batch.
	lrBatchTarget	LREAL		Planned number of products to be produced for the current batch.
	lrActualBuild	LREAL		Number of products already built. Must be 0 if production has not started.
	rProductsPerMin	REAL		Planned machine performance in products per minute. Valid range: 0.001 … 10000.
	rOEEpercent	REAL		Actual or average Overall Equipment Effectiveness (OEE). Expected range: > 0.1 … 100.0. A value of 0 is interpreted as 100%. Maximum accepted value is 999%.
	dtLocalDateTime	DT		Current local date and time used internal as calculation.
Output	ltTimeToBuild	LTIME		The calculated remaining build time until the batch target is reached based on defined product targets and machine performance.
	xTargetReached	BOOL		TRUE when the batch target quantity has been reached or exceeded.
	xLicensed	BOOL		TRUE when a valid full or demo library license is active.
	xError	BOOL		TRUE if an error or warning is detected. Detailed error information is provided in iErrorID.
	iErrorID	INT		Error and status identifier for diagnostics.

3.5 Execution & Timing Behaviour

The function block is intended to be executed cyclically in a task context.

Timing precision depends on the configured task cycle time and target platform

3.6 Error Handling & Diagnostics

If an internal error, a library issue, or a licensing problem occurs, xError is set to TRUE and iErrorID provides the corresponding error code. Detailed descriptions of the error codes are defined in the enumeration eError.

3.7 Assumptions & Limitations

Accuracy depends on the system clock. Hardware‑dependent behavior may vary across different CODESYS platforms.

The build time calculation is restricted to a 49-day window. If the required build time extends beyond this period, the function block cannot provide a valid result.

Before ordering this library, please verify the correct functionality of the library function block in your target system.

3.8 Example Implementation

Declaration and Call of the Function Block GetBuildTime:

GVL_Par:

VAR_GLOBAL

xExternActiveBatch	: BOOL;	//If TRUE a non-scheduled batch schedule is active, is FALSE schedule ends
lrBatchTarget	: LREAL := 5000;	// Planned Target for the actual batch run
lrActualBuild	: LREAL;	// Actual build products, if no parts are made it is zero (0)
rProductsPerMin	: REAL := 60;	// Planned Machine Performance in products per min. (valid value between >= 0.001 and <= 10000)
rOEEpercent	: REAL := 90;	// Actual or average OEE in percent e.g 80.5% (expected value between > 0.1 and <= 100 %, Limit 999%), 0% will be set to 100%
dtLocalDateTime	: DT;	// Local Date and Time

END_VAR

VAR

fb_GetBuildTime : DDAS_SL.GetBuildTime;

END_VAR

FB call in structure text:

fb_ GetBuildTime(

xEnabled := TRUE,

xActive := GVL_Par. xExternActiveBatch,

lrBatchTarget := GVL_Par. lrBatchTarget,

lrActualBuild := GVL_Par. lrActualBuild,

rProductsPerMin := GVL_Par. rProductsPerMin,

rOEEpercent := GVL_Par. rOEEpercent,

dtLocalDateTime := GVL_Par. dtLocalDateTime

);

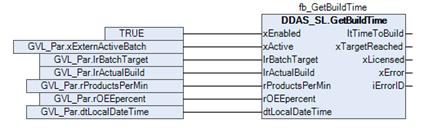

FB call in continuous function chart diagram:

Function block sample input and output parameter:

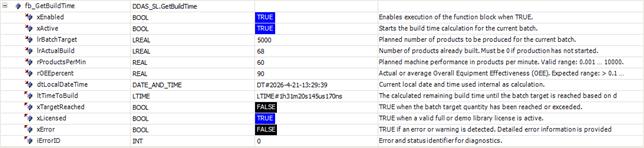

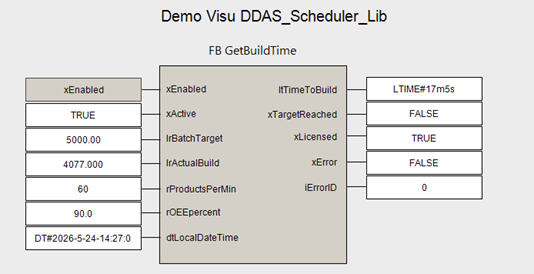

Screenshot example in Online / Monitor mode

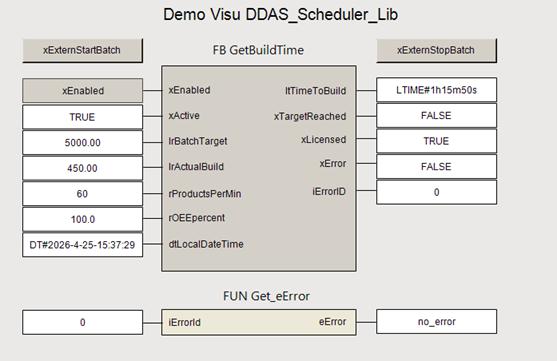

Demo Visualisation

4 FB GetBatchScheduledEndTime

4.1 General Information

This chapter describes the function block GetBatchScheduledEndTime.

Function Block Name: GetBatchScheduledEndTime

Library: DDAS_Scheduler_Lib

Dependent Codesys libraries: Util

CODESYS Version Compatibility: CODESYS V3.5 and higher

License / Usage Restrictions: Requires valid full or demo library license

4.2 Purpose & Scope

This function block GetBatchScheduledEndTime estimates the batch end time based on the calculated batch build time and the configured production and break schedules.

This function block is typically used in batch-oriented manufacturing applications where the batch end time must be estimated while considering production schedules and planned breaks. The estimation is based on defined product targets, actual machine performance, and the calculated build time.

Typical Use Cases

The calculated batch end time can be used for operator displays, production planning, scheduling of downstream processes, or triggering subsequent automation steps.

4.3 Functional Overview

When enabled, the GetBatchScheduledEndTime function block estimates the expected batch end date and time based on the remaining build time and the configured production and break schedules.

The calculation uses the current local date and time, the active weekday, and the user‑defined shift and break configuration. The estimation is based on the provided remaining build time, which reflects defined product targets and actual machine performance.

Unlike pure build‑time calculations, this function block considers production schedules and planned breaks to determine a realistic batch end time.

The result provides the calculated batch end date and time, the total remaining time until batch completion, and the accumulated scheduled break time within this period. Additional status outputs indicate calculation validity, license status, and diagnostic information.

Key inputs include:

Build time input, providing the remaining time required to complete the batch.
Schedule configuration input, defining production shifts and planned breaks.
Time reference inputs, such as local date and time and the current day of the week.
Control input, enabling execution of the function block.

Key outputs include:

The estimated batch end date and time, considering production and break schedules.
The total remaining time to batch end, including scheduled breaks.
The accumulated break time until batch completion.
A validity indicator, signalling whether the calculated batch end time is valid.
Diagnostic and licensing outputs, indicating license validity and any error or warning conditions with detailed status information.

4.4 Interface Description

4.4.0 Function block Inputs and Outputs

Scope	Name	Type	Comment
Input	xEnabled	BOOL	Enables execution of the function block when TRUE.
	ltTimeToBuildIn	LTIME	The calculated remaining build time until the batch target is reached based on defined product targets and machine performance.
	dtLocalDateTime	DT	Current local date and time used internal as calculation.
	uiDayOfWeek	UINT	Local day of the week, where 1 = Monday and 7 = Sunday. A value of 0 indicates an unknown weekday.

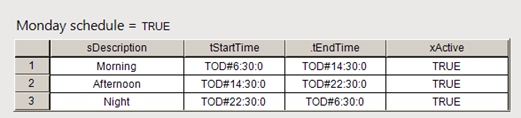

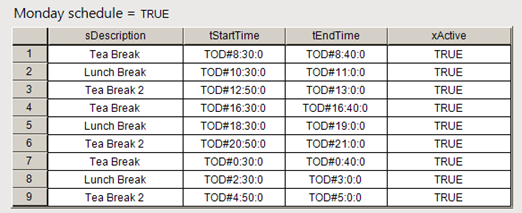

InOut	scPar_Schedule	scPar_Schedule	User‑configured shift and break schedule
Output	dtBatchEndTime	DT	Estimated batch end time based on the calculated batch build time and the configured production and break schedules.
	ltTotalTimeToBatchEnd	LTIME	Total time remaining until batch end.
	tBreakTimeToBatchEnd	TIME	Total scheduled break time until batch end.
	xBatchEndTimeValid	BOOL	The batch end date and time has been calculated successfully and is valid.
	xLicensed	BOOL	TRUE when a valid full or demo library license is active.
	xError	BOOL	TRUE if an error or warning is detected. Detailed error information is provided in iErrorID.
	iErrorID	INT	Error and status identifier for diagnostics.

4.5 Execution & Timing Behaviour

The function block is intended to be executed cyclically in a task context.

Timing precision depends on the configured task cycle time and target platform

4.6 Error Handling & Diagnostics

4.7 Assumptions & Limitations

Accuracy depends on the system clock. Hardware‑dependent behavior may vary across different CODESYS platforms.

The batch end time estimation is restricted to a one‑week calculation window. If the required build time extends beyond this period, the function block cannot provide a valid result.

Before ordering this library, please verify the correct functionality of the library function block in your target system.

4.8 Example Implementation

Declaration and Call of the Function Block GetBatchScheduledEndTime:

GVL_Par:

VAR_GLOBAL

dtLocalDateTime	: DT;	// Local Date and Time
uiDayofWeek	: UINT;	// Local Day of week
scPar_Schedule	:DDAS_SL.scPar_Schedule;	// Input Production schedule and Breaks

END_VAR

VAR

fb_GetBatchEndTime : DDAS_SL.GetBatchScheduledEndTime;

END_VAR

FB call in structure text:

fb_GetBatchEndTime(

xEnabled := TRUE,

ltTimeToBuildIn := fb_GetBuildTime. ltTimeToBuild,

dtLocalDateTime := GVL_Par. dtLocalDateTime,

uiDayOfWeek := GVL_Par. uiDayOfWeek,

scPar_Schedule := GVL_Par. scPar_Schedule

);

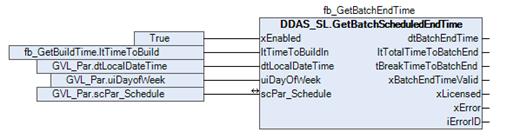

FB call in continuous function chart diagram:

Function block sample input and output parameter:

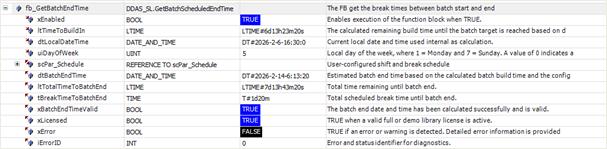

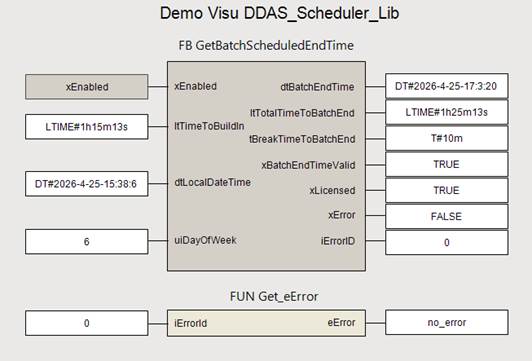

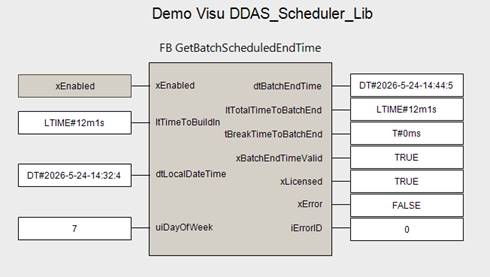

Screenshot example in Online / Monitor mode

Demo Visualisation

5 FB GetSchedule

5.1 General Information

This chapter describes the function block GetSchedule.

Function Block Name: GetSchedule

Library: DDAS_Scheduler_Lib

Dependent Codesys libraries: Util

CODESYS Version Compatibility: CODESYS V3.5 and higher

License / Usage Restrictions: Requires valid full or demo library license

5.2 Purpose & Scope

The function block GetSchedule provides information about the currently active production and break schedule. It includes the start and end times of the active schedule, an indication of whether a schedule is active, the duration of the active schedule, start and end cycle trigger bits, as well as information about previous schedules.

This function block is typically used in manufacturing and production automation systems to monitor and evaluate the currently active production and break schedule. It provides real‑time information about schedule start and end times, schedule activity status, and duration, as well as trigger signals for schedule start and end events. The function block can also supply historical schedule information for analysis and reporting.

Typical Use Cases

The scheduler output can be used to synchronize production logic, control machine states, and support operator displays. It enables accurate production planning and ensures the correct handling of breaks, shift changes, and batch transitions within automated processes.

In addition, the scheduler data is highly relevant for Overall Equipment Effectiveness (OEE) calculations. Since OEE is based on planned and unplanned production schedules, reliable schedule start and end triggers are required to correctly initiate and terminate shift‑ and batch‑level calculations. The recorded scheduler information also supports the creation of historical production records for performance analysis and reporting.

5.3 Functional Overview

The GetSchedule function block evaluates and manages the currently effective production schedule within an automation system. Its core purpose is to determine which schedule is active at a given moment—shift, batch, or break—and to provide a consistent, real‑time representation of the scheduling state to the rest of the control application.

The block combines time‑based schedule evaluation with external control signals. It assesses user‑configured shift and break definitions against the current local date, time, and weekday, while also allowing batch and break schedules to be started or stopped explicitly by external logic. This makes it suitable for both calendar‑driven operation (shifts and planned breaks) and event‑driven operation (batches and ad‑hoc breaks).

At runtime, GetSchedule continuously determines:

Whether any production schedule is currently active
Whether an active schedule represents normal production or a break
The effective start and end times of the active schedule
The total duration of the schedule
Transitions such as schedule start and schedule end

Break schedules may temporarily interrupt or overlay active production schedules, while batch schedules can be initiated independently of fixed shifts when required. Shift schedules can also be deliberately suppressed, enabling batch‑only operation modes.

In addition to the current state, the function block maintains historical context, preserving information about previously active schedules. This enables reliable downstream use for reporting, analysis, and traceability without requiring additional logic elsewhere in the application.

The function block also handles diagnostics and licensing status, ensuring that schedule evaluation operates only when valid and providing clear error or status feedback if abnormal conditions occur.

Overall, GetSchedule acts as a centralized scheduling authority within the automation software. It decouples time‑ and schedule‑related rules from machine control logic, allowing production sequencing, machine enable states, operator messages, and data collection to remain synchronized with shifts, batches, and breaks in a safe and deterministic way.

5.4 Interface Description

5.4.0 Function block Inputs and Outputs

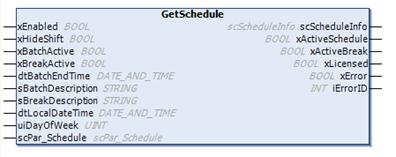

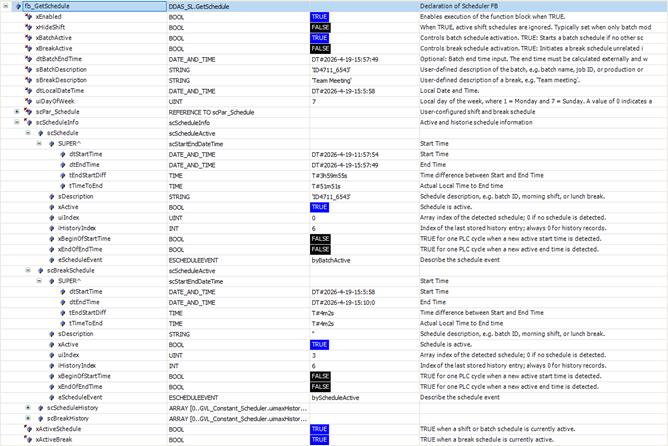

Scope	Name	Type	Comment
Input	xEnabled	BOOL	Enables execution of the function block when TRUE.
	xHideShift*	BOOL	When TRUE, active shift schedules are ignored. Typically set when only batch mode is used to disable the active schedule.
	xBatchActive*	BOOL	Controls batch schedule activation. TRUE: Starts a batch schedule if no other schedule is currently active. FALSE: Stops the active batch schedule.
	xBreakActive	BOOL	Controls break schedule activation. TRUE: Initiates a break schedule unrelated if another schedule is currently active. FALSE: Terminates an externally started break schedule.
	dtBatchEndTime	DT	Optional: Batch end time input. The end time must be calculated externally and will be send to the ouput information.
	sBatchDescription	STRING	User-defined description of the batch, e.g. batch name, job ID, or production order.
	sBreakDescription	STRING	User-defined description of a break, e.g. ‘Team meeting’.
	dtLocalDateTime	DT	Local Date and Time.
	uiDayOfWeek	UINT	Local day of the week, where 1 = Monday and 7 = Sunday. A value of 0 indicates an unknown weekday.
InOut	scPar_Schedule	scPar_Schedule	User‑configured shift and break schedule
Output	scScheduleInfo	scScheduleInfo	Active and history schedule information
	xActiveSchedule	BOOL	TRUE when a shift or batch schedule is currently active.
	xActiveBreak	BOOL	TRUE when a break schedule is currently active.
	xLicensed	BOOL	TRUE when a valid full or demo library license is active.
	xError	BOOL	TRUE if an error or warning is detected. Detailed error information is provided in iErrorID.
	iErrorID	INT	Error and status identifier for diagnostics.

xHideShifts*:
When production operates in batch mode which is in the most cases the situation, the weekly production schedule is typically used only to determine the batch end time. Actual production is executed in batches and takes place within the scheduled production period.

The scheduler output records the actual start and end times of the batch, rather than the start and end times of the scheduled production period.

xBatchActive*:

When this input is FALSE and xHideShifts is also FALSE, the scheduler output records the start and end times of the scheduled production period based on the user‑defined production settings in scPar_Schedule.

5.4.1 Structures

scScheduleInfo

This structure contains the full output information of the function block related to the currently and historical active schedule.

Name	Type
scSchedule	scScheduleActive
scBreakSchedule	scScheduleActive
scScheduleHistory	ARRAY [0..GVL_Constant_Scheduler.uimaxHistory] OF scScheduleHistory
scBreakHistory	ARRAY [0..GVL_Constant_Scheduler.uimaxHistory] OF scScheduleHistory

scScheduleActive

This structure contains the output information of the function block related to the currently active schedule.

Name	Type	Comment	Inherited from
dtStartTime	DT	Start Time	scStartEndDateTime
dtEndTime	DT	End Time	scStartEndDateTime
tEndStartDiff	TIME	Time difference between Start and End Time	scStartEndDateTime
tTimeToEnd	TIME	Actual Local Time to End time	scStartEndDateTime
sDescription	STRING	Schedule description, e.g. batch ID, morning shift, or lunch break.
xActive	BOOL	Schedule is active.
uiIndex	UINT	Array index of the detected schedule; 0 if no schedule is detected.
iHistoryIndex	INT	Index of the last stored history entry; always 0 for history records.
xBeginOfStartTime	BOOL	TRUE for one PLC cycle when a new active start time is detected.
xEndOfEndTime	BOOL	TRUE for one PLC cycle when a new active end time is detected.
eScheduleEvent	eScheduleEvent	Describe the schedule event

scStartEndDateTime

This structure contains the date time output information of the function block related to the currently active schedule.

Name	Type	Comment
dtStartTime	DT	Start Time
dtEndTime	DT	End Time
tEndStartDiff	TIME	Time difference between Start and End Time
tTimeToEnd	TIME	Actual Local Time to End time

scScheduleHistory

This structure contains the output information of the function block related to the history of active schedule.

Name	Type	Comment	Inherited from
dtStartTime	DT	Start Time	scStartEndDateTime
dtEndTime	DT	End Time	scStartEndDateTime
tEndStartDiff	TIME	Time difference between Start and End Time	scStartEndDateTime
tTimeToEnd	TIME	Actual Local Time to End time	scStartEndDateTime
sDescription	STRING	Schedule description, e.g. batch ID, morning shift, or lunch break.	scScheduleActive
xActive	BOOL	Schedule is active.	scScheduleActive
uiIndex	UINT	Array index of the detected schedule; 0 if no schedule is detected.	scScheduleActive
iHistoryIndex	INT	Index of the last stored history entry; always 0 for history records.	scScheduleActive
xBeginOfStartTime	BOOL	TRUE for one PLC cycle when a new active start time is detected.	scScheduleActive
xEndOfEndTime	BOOL	TRUE for one PLC cycle when a new active end time is detected.	scScheduleActive
eScheduleEvent	eScheduleEvent	Describe the schedule event	scScheduleActive
dtEvent	DT	Event time of Start or End event
scSchedule	scStartEndDateTime	Show Start and End time of schedule which can be different to real Start and End time

5.5 Execution & Timing Behaviour

The function block is intended to be executed cyclically in a task context.

Timing precision depends on the configured task cycle time and target platform

5.6 Error Handling & Diagnostics

5.7 Assumptions & Limitations

Accuracy depends on the system clock. Hardware‑dependent behavior may vary across different CODESYS platforms.

The shift calendar is limited to a 7‑day period, with up to three shifts and nine breaks configurable per day. Additionally, the scheduler maintains a history of the most recent ten schedule events.

Before ordering this library, please verify the correct functionality of the library function block in your target system.

5.8 Example Implementation

Declaration and Call of the Function Block GetSchedule:

GVL_Par:

VAR_GLOBAL

xHideShift	: BOOL;	// A TRUE signal will skip active shift schedules; Normally set when only batch mode is used for active schedule.
xExternActiveBatch	: BOOL;	// If TRUE a non-scheduled batch schedule is active, is FALSE schedule ends
xExternActiveBreak	: BOOL;	// If TRUE a non-scheduled break scheudle is active, is FALSE schedule ends
dtBatchEndTime	: DT;	// Batch end time with breaks
sJobID	: STRING := 'ID4711_6543';	// Sample Batch ID string
sBreak	: STRING:= 'Team Meeting';	// Sample extern Break description
dtLocalDateTime	: DT;	// Local Date and Time
uiDayofWeek	: UINT;	// Local Day of week
scPar_Schedule	: DDAS_SL.scPar_Schedule;	// Input Production schedule and Breaks
scScheduleInfo	: DDAS_SL.scScheduleInfo;	// Output FB GetSchedule

END_VAR

VAR

fb_GetSchedule : DDAS_SL.GetSchedule;

END_VAR

FB call in structure text:

fb_GetSchedule(

xEnabled := TRUE,

xHideShift := GVL_Par. xHideShift,

xBatchActive := GVL_Par. xExternActiveBatch,

xBreakActive := GVL_Par. xExternBreakBatch,

dtBatchEndTime := GVL_Par. dtBatchEndTime,

sBatchDescription := GVL_Par. sJobID,

sBreakDescription := GVL_Par. sBreak,

dtLocalDateTime := GVL_Par. dtLocalDateTime,

uiDayOfWeek := GVL_Par. uiDayOfWeek,

scPar_Schedule := GVL_Par. scPar_Schedule

);

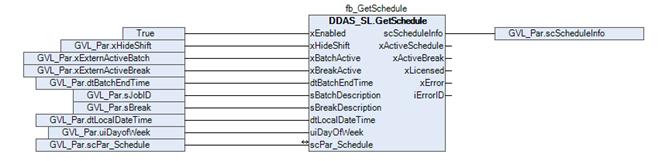

FB call in continuous function chart diagram:

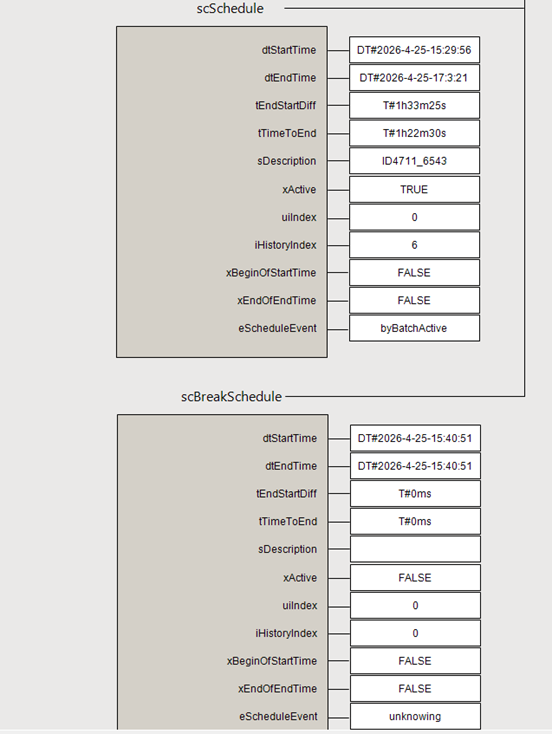

Function block sample input and output parameter:

Screenshot example in Online / Monitor mode active shift/batch and break information.

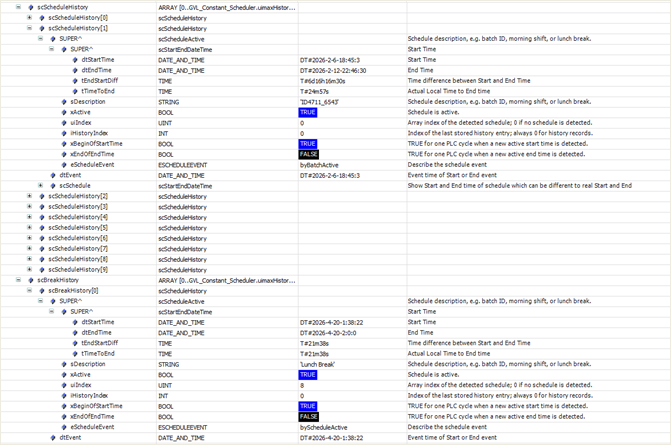

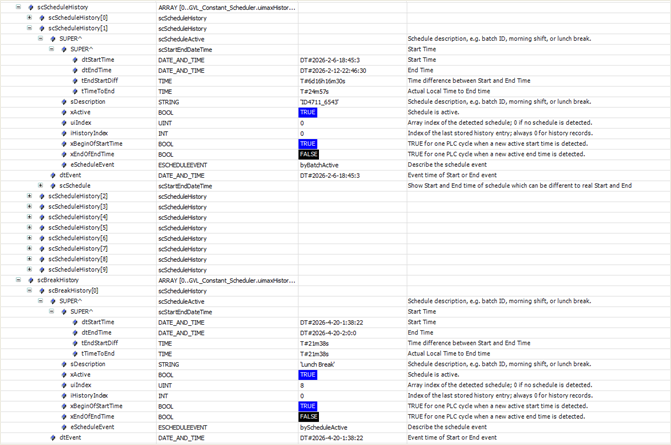

Screenshot example in Online / Monitor mode history shift/batch and break information.

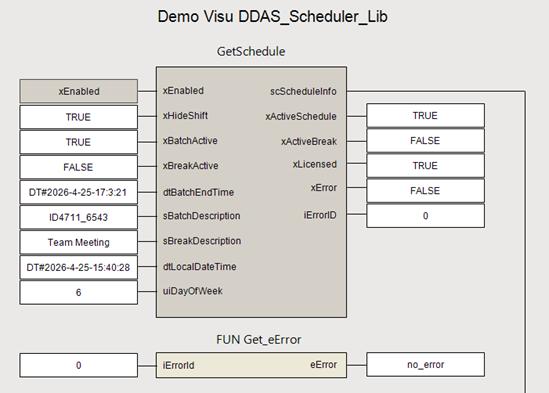

Demo Visualisation

6 FB UpdateInterval

6.1 General Information

This chapter describes the function block UpdateInterval.

Function Block Name: UpdateInterval

Library: DDAS_Scheduler_Lib

Dependent Codesys libraries: n/a

CODESYS Version Compatibility: CODESYS V3.5 and higher

License / Usage Restrictions: Requires valid full or demo library license

6.2 Purpose & Scope

This function block implements an interval-based filter for date and time values, limiting update frequency to match user or display requirements and avoiding excessive cyclic refreshes.

Typical Use Cases

When date and time information is updated cyclically at a high frequency, directly refreshing the display can be inconvenient for the operator.

This function block provides a filter to update date and time values only as required for the user, reducing unnecessary display updates.

6.3 Functional Overview

The UpdateInterval function block controls the update rate of a date and time signal by applying an interval-based and event-driven filter. It is intended to prevent unnecessary high-frequency updates, improving readability and usability for operator displays and downstream consumers.

When enabled, the function block accepts an input date/time value and updates the output either periodically based on a configurable time interval or immediately in response to dedicated event signals.

Multiple event inputs allow external triggering of updates independent of the cyclic interval. Diagnostic and licensing status outputs are provided to support reliable operation and integration.

Additional status outputs support license verification and diagnostic handling.

When enabled via xEnabled, the function block processes the incoming date and time value provided at dtDateTimeIn.

The update of the output date and time is controlled either by a configurable cyclic interval (tUpdateInterval) or by event-driven triggers.

Four independent event inputs (xEventUpdate1 to xEventUpdate4) allow immediate updating of the output on rising or falling signal edges, enabling external control over when updates occur.

The filtered and conditionally updated date and time value is made available at dtDateTimeOut.

The function block additionally provides the xLicensed output to indicate whether a valid full or demo license is active. Any detected error or warning condition is signalled via xError, with further diagnostic details provided through the iErrorID output.

6.4 Interface Description

6.4.0 Function block Inputs and Outputs

Scope	Name	Type	Initial	Comment
Input	xEnabled	BOOL		Enables execution of the function block when TRUE.
	dtdateTimeIn	DT		Input Date Time value
	xEventUpdate1	BOOL		Update 1. output on rising and falling edge
	xEventUpdate2	BOOL		Update 2. output on rising and falling edge
	xEventUpdate3	BOOL		Update 3. output on rising and falling edge
	xEventUpdate4	BOOL		Update 4. output on rising and falling edge
	tUpdateInterval	TIME	TIME#1s0ms	Time base that defines how often date and time information is updated
Output	dtdateTimeOut	DT		Output Date Time value
	xLicensed	BOOL		TRUE when a valid full or demo library license is active.
	xError	BOOL		TRUE if an error or warning is detected. Detailed error information is provided in iErrorID.
	iErrorID	INT		Error and status identifier for diagnostics.

6.5 Execution & Timing Behaviour

The function block is intended to be executed cyclically in a task context.

Timing precision depends on the configured task cycle time and target platform

6.6 Error Handling & Diagnostics

6.7 Assumptions & Limitations

Accuracy depends on the system clock. Hardware‑dependent behavior may vary across different CODESYS platforms.

Before ordering this library, please verify the correct functionality of the library function block in your target system.

6.8 Example Implementation

Declaration and Call of the Function Block UpdateInterval:

GVL_Par:

VAR_GLOBAL

dtBatchEndTime	: DT;	// Batch end time with breaks
xUpdate1	: BOOL;	// Condition 1 for update date time output
xUpdate2	: BOOL;	// Condition 2 for update date time output
tUpdateInterval	: TIME := T#1m;	// Update output based on update interval time

END_VAR

VAR

fb_ UpdateInterval : DDAS_SL. UpdateInterval;

END_VAR

FB call in structure text:

fb_ UpdateInterval(

xEnabled := TRUE,

dtdateTimeIn := GVL_Par_SL.dtBatchEndTime,

xEventUpdate1 := GVL_Par_SL.xUpdate1,

xEventUpdate2 := GVL_Par_SL.xUpdate2,

dtLocalDateTime := GVL_Par_SL.tUpdateInterval

);

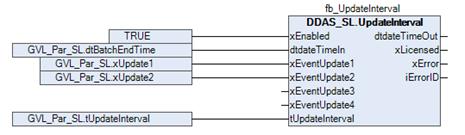

FB call in continuous function chart diagram:

Function block sample input and output parameter:

Screenshot example in Online / Monitor mode

7 Global

7.1 Structures

scPar_Schedule

This structure provides the user‑configured shift, production, and break schedules.

Name	Type	Comment
xActivateShiftSchedule	BOOL	IF TRUE Shift Schedule is activated
xActivateBreakSchedule	BOOL	IF TRUE Break Schedule is activated
SetShifts	ARRAY [1..7] OF scScheduleShiftActivated	Information of currently active schedule
SetBreaks	ARRAY [1..7] OF scScheduleBreakActivated	Information of currently active break

scScheduleShiftActivated

This structure provides the user‑configured production shift schedules.

Name	Type	Comment
xActive	BOOL	Active Schedule
SetSchedule	ARRAY [1..GVL_Constant_Scheduler.uimaxNoOfShifts] OF scParInSchedule

scScheduleBreakActivated

This structure provides the user‑configured production break schedules.

Name	Type	Comment
xActive	BOOL	Active Schedule
SetSchedule	ARRAY [1..GVL_Constant_Scheduler.uimaxNoOfShifts] OF scParInSchedule

scParInSchedule

This structure provides the user‑configured single production schedules.

Name	Type	Initial	Comment
sDescription	STRING		Schedule Description e.g. Morning or Lunch Break
tStartTime	TOD		Start time
tEndTime	TOD		End time
xActive	BOOL	FALSE	TRUE = Schedule activ, FALSE = Schedule inactiv

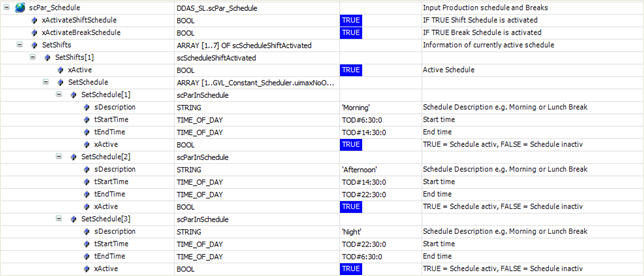

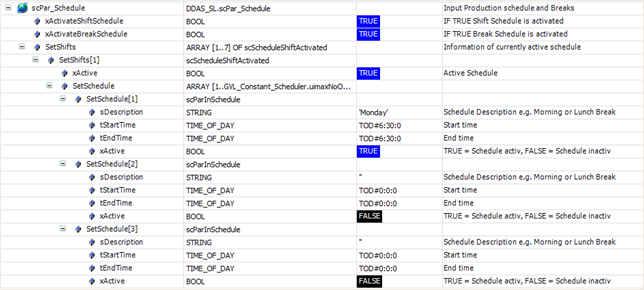

Demo Visualisation

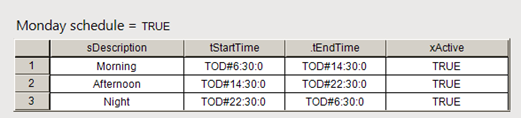

Shift Schedule

Break Schedule

7.2 Enumerations

eScheduleEvent

Schedule event type enumeration.

Name	Initial	Comment
unknowing	0	unknowing event type
byStartTime	1	Schedule start detect by Start time
byScheduleActive	2	Schedule start detect by rising xActive
byEndTime	3	Schedule end detect by End time
byScheduleNotActive	4	Schedule end detect by falling xActive
byBatchActive	5	Extern Batch start detect by rising xBatchActive
byBatchNotActive	6	Extern Batch end detect by falling xBatchActive
byBreakActive	7	Extern Break start detect by rising xBreakActive
byBreakNotActive	8	Extern Break end detect by falling xBreakActive

eError

Library Possible Error Codes and Descriptions.

Name	Initial	Comment
no_error	0	No error detected.
no_ValidLicense	10	No valid license was found. Please verify the library license using DDAS_LM.Get_Lib_License.
invalid_LocalDateTime	21	Invalid dtLocalDateTime = DT#1970-01-01-00:00:00.
invalid_eDayofWeek	23	Invalid week day eDayofWeek = 0 or eDayofWeek > 7.
invalid_DateTimeBoundries	25	Invalid dtLocalDateTime = DT#1970-01-01-00:00:00 or dtLocalDateTime = DT#2106-02-07-06:28:15).
invalid_InputParameter	30	One or more input parameters are zero or outside the permitted range.
no_Active_Schedule	31	No active schedule was found..
week_overlow	40	Batch end behind one week.
ltime_overflow	41	The calculated LTime value is greater than 1000 days and exceeds the allowed range.
time_overflow	42	The calculated LTime value is greater than 49 days and exceeds the allowed range.

7.3 Global Variable

GVL_Constant_Scheduler

Library scheduler constants.

Scope	Name	Type	Initial	Comment
Constant	uimaxNoOfShifts	UINT	3	Max. number of shifts per day (24 hours), (array starts by index 1)
	uimaxNoOfBreaks	UINT	9	Max. number of breaks per day (24 hours), (array starts by index 1)
	uimaxHistory	UINT	9	Max. history area (array starts by index 0)

GVL_LibGuide

This Global Variable List provides the library license GUID. Relevant input parameter for the function block DDAS_LM.Get_Lib_License, required to activate the library license in conjunction with the activation key and side code.

Scope	Name	Type	Initial	Comment
Constant	cLibraryGuid	STRING	‘{LIB-DDAS-0A3F1609}’	Unique Library license GUID for use in the user program to activate the library license.

7.4 Example Implementation

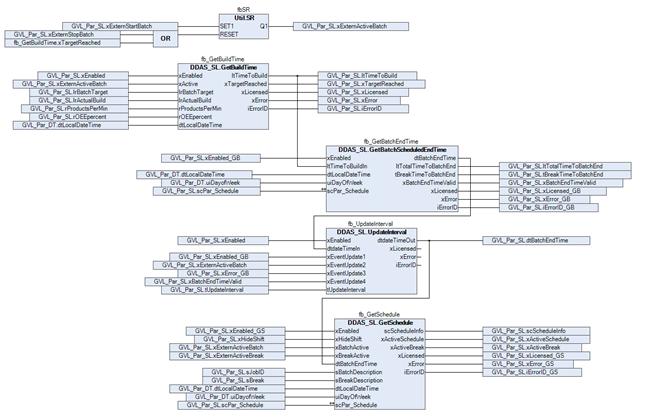

The following screenshots illustrate a complete implementation of the library function blocks, including the license function block and a simple set/reset function block used to start and stop a batch.

The current local date, time, and day of the week can be obtained using the DDAS function block DDAS_DT.GetDateTimeInfo from the DDAS_DateTime_lib library.

FEEDBACK

Your Feedback Matters

These instructions have been prepared to the best of our knowledge and belief to provide you with the highest possible level of support when working with our product.

Despite our best efforts, we may not always fully achieve this objective. If you identify any issues or have suggestions for improvement, we would greatly appreciate your feedback.

Please send your comments or criticism in a short e‑mail to:

support@ddas.digital

Thank you for your support.

Your DDAS Application Software Team

Documentation	Subject
DDAS LicenseManager Library Manual	Description and usage of the library license management function blocks
DDAS DateTime Library Manual	Description and usage of the GetDateTime function block.
